51004 2002 Conector de obleas 180 ° y 90 °
51004 2002 Conector de obleas 180 ° y 90 °
51004 2002 Conector de obleas 180 ° y 90 °

51004 2002 Conector de obleas 180 ° y 90 °

Obtener el último precio
Cantidad de pedido mínima:1
Atributos del producto

MarcaXydz

Embalaje y entrega
Descargar :

The file is encrypted. Please fill in the following information to continue accessing it

Descripción

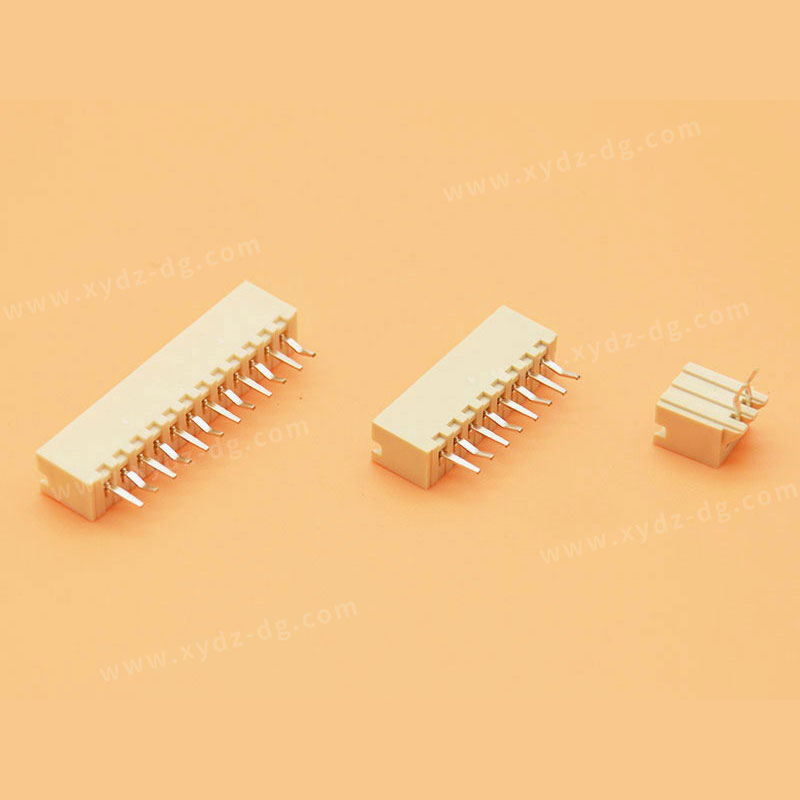

51004 2002 180° & 90° Wafer Connector
SPECIFICATIONS
Voltage rating 125V AC, DC
Current rating 2A, AC, DC
Withstanding Voltage 800V AC/minute
Insulation resistance 1000MΩ min
Temperature range -25°C~+85°C
Contact resistance 10mΩ max
WAFER
Part No. W2002V(R)-NP-9T(W2002V-02P-9T-WL3.2-B)
Poles 02-04P
Housing Material Nylon9T UL94V-0
Pin Material Brass
Contact Area Plating Tin-Plated
